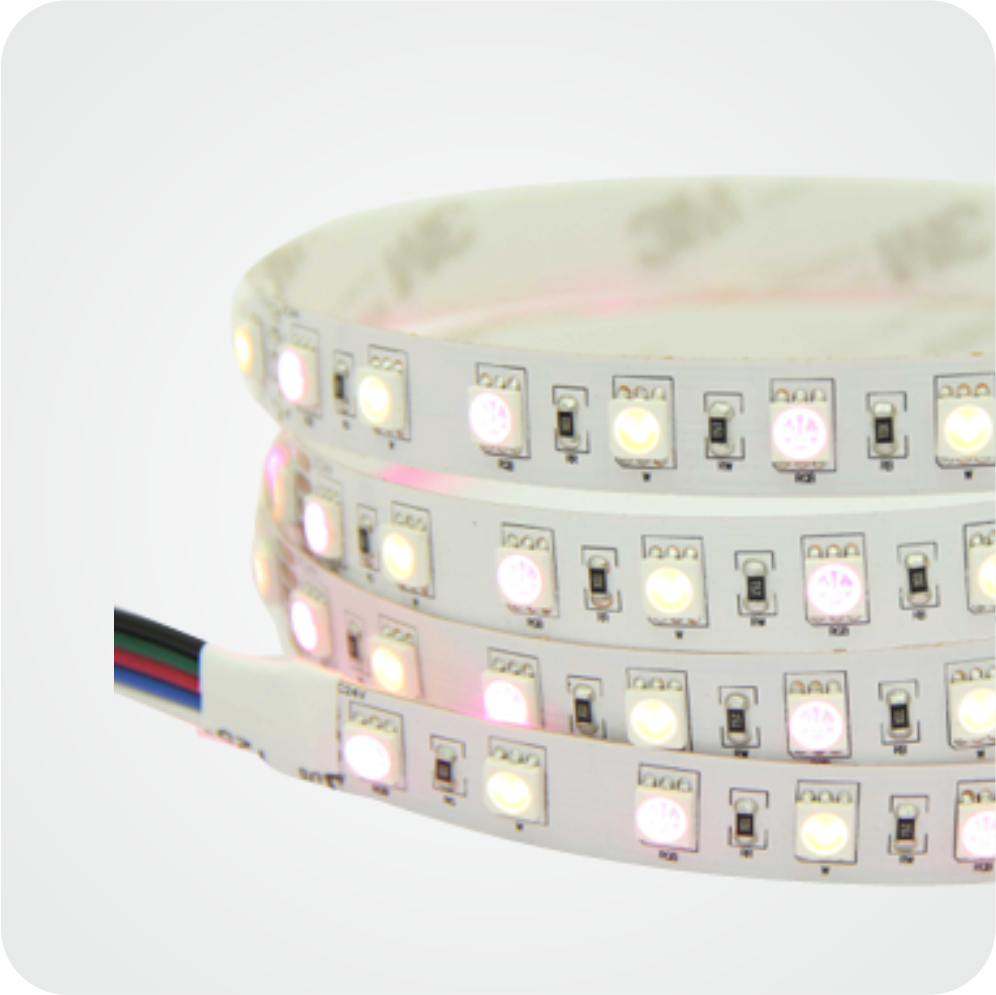

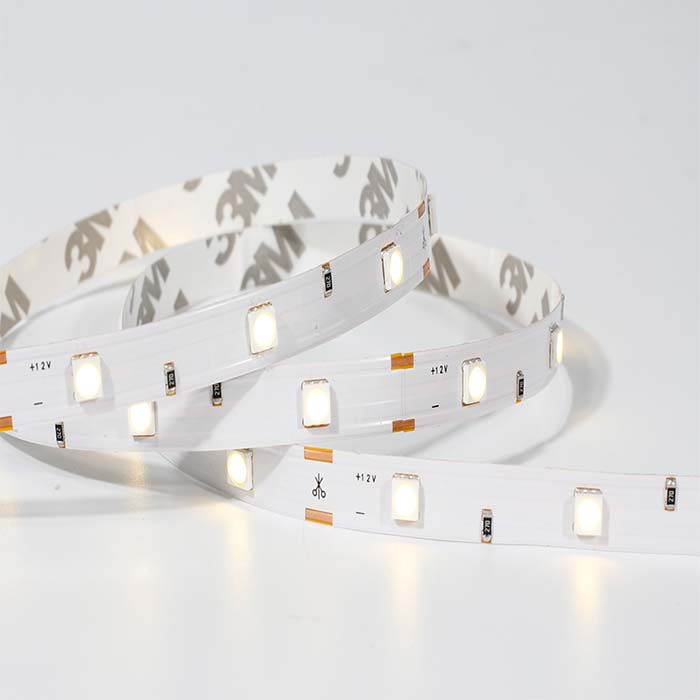

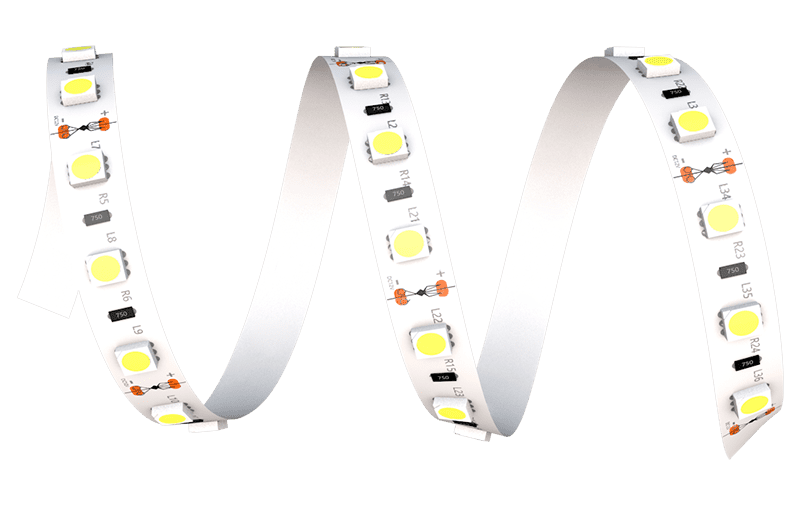

5m（16.4ft） 60LED/m Single Color Light 5050 LED Strip Light
5m（16.4ft） 60LED/m Single Color Light 5050 LED Strip Light
5m（16.4ft） 60LED/m Single Color Light 5050 LED Strip Light

5m(16.4ft) 60LED/m Single Color Light 5050 LED Strip Light

top sale

Product: SMD5050-60LED-10MM
220lm/W high efficiency SMD5050 LEDs
Double-sided copper-clad laminate
Single one color bin, 3 steps SDCM available

5m（16.4ft） 60LED/m Single Color Light 5050 LED Strip Light

Select the number of specifications

Please check the product information you want!

Product Detail


5m(16.4ft) 60LED/m Single Color Light 5050 LED Strip Light

Product: SMD5050-60LED-10MM

220lm/W high efficiency SMD5050 LEDs

Double-sided copper-clad laminate

Single one color bin, 3 steps SDCM available



Specifications

Model No.

Voltage

Power

Efficiency

Ra

CCT

LED Type

LED QTY

PCB Width

Cutting Unit

CMR-5050-060L-12V

DC12V

12W/m

90-95lm/W @Ra70

85-90lm/W @Ra80

80-85lm/W @Ra90

＞70,＞80,＞90

3000K – 6000K

SMD5050

60LEDs/m

10mm

50mm/3LEDs

CMR-5050-060L-24V

DC24V

12W/m

90-95lm/W @Ra70

85-90lm/W @Ra80

80-85lm/W @Ra90

＞70,＞80,＞90

3000K – 6000K

SMD5050

60LEDs/m

10mm

100mm/6LEDs

Dimensions

12V

LED Strip_RAX072A

24V

LED Strip_RAX072C

Applications

LED strip for decorative lighting

Introduction of LED Strip

LED strip is one of the most popular versatile forms of lighting, by different of chip density, IP rating, color and CRI, it’s widely uesed for decorative lighting, back lighting, linear lighting, signage lighting, etc. With flexiable and cuttable ability, people could do DIY lighting as well.

  • LED Type

Since surface mounted technology came out, various type of SMD leds has been created, such as 3528, 5050, 2835, 5630, 3030, 3014, etc. Which is defined by its size. With different power draw and lumen output, they are used for different applications.

SMD2835

SMD2835

SMD5050

SMD5050

SMD3528

SMD3528

SMD5630

SMD5630

SMD3030

SMD3030

SMD3014

SMD3014

  • LED Density

LED density is an important factor to determine the lumen output and visual effect of strips,higher density strips with 120 leds per meter, emits high brightness and even lighting. Covered by milky housing, you will see the difference, as no visible hotspots and darkspots for high density strip. 30LEDs, 60LEDs and 120LEDs are the most popular ones.

LED density
  • Color Temperature

We describle strip color as “warm white”, “cool white”. Actually, we are talking about its color temperature(CCT), ranking from 2700K-6500K, it’s measure of how warm or cool the light’s color appears. Troditional incandescent bulb is warm white(2700K) with soft glow, and daylight is cool white(5500K) with bright light.

CCT_6000K
CCT_4000K
CCT_3000K
CCT_6000K_application
CCT_4000K_application
CCT_3000K_application

6500K

4000K

3000K

  • Color Rendering Index

With the development of LED teconoloy, we increasingly realize the importance of CRI which stands for color rendering index. This measure shows how accurate color appears under the light source. Natural sunlight is defined as value of 100, the closer to 100, the more real color it appears. Fluorescent lamp CRI value is around 70, LED strip has CRI value of over 80.

CRI90
CRI80
CRI70

CRI≥90

CRI≥80

CRI≥70

  • Cuttable

Flexibility is one of the most important feature of this strip, LEDs are mounted on flexible circuit board, it’s bendable to be fixed on different shapes of fixture.On the other aspect, a particular number of LEDs is fixed in series, each series of the strip can work independently, which means it can be cut to specific length as desired.

Cuttable

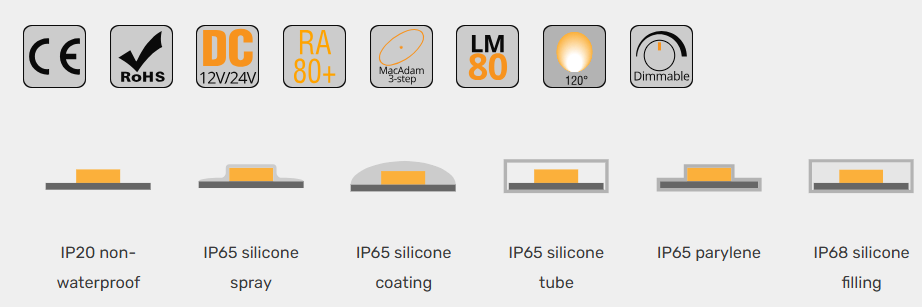

  • Water-proof Type

Ingress protection rating(IP) presents the ability against solids and liquids of LED strip, the higher number it is, the greater protection it gets.
IP20 non-waterproof, IP54 nano, IP64 silicone coating, IP65 hollow silicone tube, IP68 glue filling.

IP20 non-waterproof

IP20 non-waterproof

IP65 silicone tube

IP65 silicone tube

IP65 parylene

IP65 parylene

IP65 heat shrink tube

IP65 heat shrink tube

IP65 silicone spray

IP65 silicone spray

IP65 silicone coating

IP65 silicone coating

IP68 silicone filling

IP68 silicone filling

  • Safe Voltage

Mostly, LED strip is operated at 12V or 24V DC, it’s a safe voltage to prevent from electric shock for operator. Select correct strip to match your exsiting driver, or you can select driver according to the strip.

DC24V

DC24V driver

DC12V

DC12V driver













No comment

Previous : IP67 Flexible Wall Washer LED Strip
Product Detail

5m(16.4ft) 60LED/m Single Color Light 5050 LED Strip Light

Product: SMD5050-60LED-10MM

220lm/W high efficiency SMD5050 LEDs

Double-sided copper-clad laminate

Single one color bin, 3 steps SDCM available



Specifications

Model No.

Voltage

Power

Efficiency

Ra

CCT

LED Type

LED QTY

PCB Width

Cutting Unit

CMR-5050-060L-12V

DC12V

12W/m

90-95lm/W @Ra70

85-90lm/W @Ra80

80-85lm/W @Ra90

＞70,＞80,＞90

3000K – 6000K

SMD5050

60LEDs/m

10mm

50mm/3LEDs

CMR-5050-060L-24V

DC24V

12W/m

90-95lm/W @Ra70

85-90lm/W @Ra80

80-85lm/W @Ra90

＞70,＞80,＞90

3000K – 6000K

SMD5050

60LEDs/m

10mm

100mm/6LEDs

Dimensions

12V

LED Strip_RAX072A

24V

LED Strip_RAX072C

Applications

LED strip for decorative lighting

Introduction of LED Strip

LED strip is one of the most popular versatile forms of lighting, by different of chip density, IP rating, color and CRI, it’s widely uesed for decorative lighting, back lighting, linear lighting, signage lighting, etc. With flexiable and cuttable ability, people could do DIY lighting as well.

  • LED Type

Since surface mounted technology came out, various type of SMD leds has been created, such as 3528, 5050, 2835, 5630, 3030, 3014, etc. Which is defined by its size. With different power draw and lumen output, they are used for different applications.

SMD2835

SMD2835

SMD5050

SMD5050

SMD3528

SMD3528

SMD5630

SMD5630

SMD3030

SMD3030

SMD3014

SMD3014

  • LED Density

LED density is an important factor to determine the lumen output and visual effect of strips,higher density strips with 120 leds per meter, emits high brightness and even lighting. Covered by milky housing, you will see the difference, as no visible hotspots and darkspots for high density strip. 30LEDs, 60LEDs and 120LEDs are the most popular ones.

LED density
  • Color Temperature

We describle strip color as “warm white”, “cool white”. Actually, we are talking about its color temperature(CCT), ranking from 2700K-6500K, it’s measure of how warm or cool the light’s color appears. Troditional incandescent bulb is warm white(2700K) with soft glow, and daylight is cool white(5500K) with bright light.

CCT_6000K
CCT_4000K
CCT_3000K
CCT_6000K_application
CCT_4000K_application
CCT_3000K_application

6500K

4000K

3000K

  • Color Rendering Index

With the development of LED teconoloy, we increasingly realize the importance of CRI which stands for color rendering index. This measure shows how accurate color appears under the light source. Natural sunlight is defined as value of 100, the closer to 100, the more real color it appears. Fluorescent lamp CRI value is around 70, LED strip has CRI value of over 80.

CRI90
CRI80
CRI70

CRI≥90

CRI≥80

CRI≥70

  • Cuttable

Flexibility is one of the most important feature of this strip, LEDs are mounted on flexible circuit board, it’s bendable to be fixed on different shapes of fixture.On the other aspect, a particular number of LEDs is fixed in series, each series of the strip can work independently, which means it can be cut to specific length as desired.

Cuttable
  • Water-proof Type

Ingress protection rating(IP) presents the ability against solids and liquids of LED strip, the higher number it is, the greater protection it gets.
IP20 non-waterproof, IP54 nano, IP64 silicone coating, IP65 hollow silicone tube, IP68 glue filling.

IP20 non-waterproof

IP20 non-waterproof

IP65 silicone tube

IP65 silicone tube

IP65 parylene

IP65 parylene

IP65 heat shrink tube

IP65 heat shrink tube

IP65 silicone spray

IP65 silicone spray

IP65 silicone coating

IP65 silicone coating

IP68 silicone filling

IP68 silicone filling

  • Safe Voltage

Mostly, LED strip is operated at 12V or 24V DC, it’s a safe voltage to prevent from electric shock for operator. Select correct strip to match your exsiting driver, or you can select driver according to the strip.

DC24V

DC24V driver

DC12V

DC12V driver













5m(16.4ft) 60LED/m Single Color Light 5050 LED Strip Light
Product: SMD5050-60LED-10MM
220lm/W high efficiency SMD5050 LEDs
Double-sided copper-clad laminate
Single one color bin, 3 steps SDCM available
