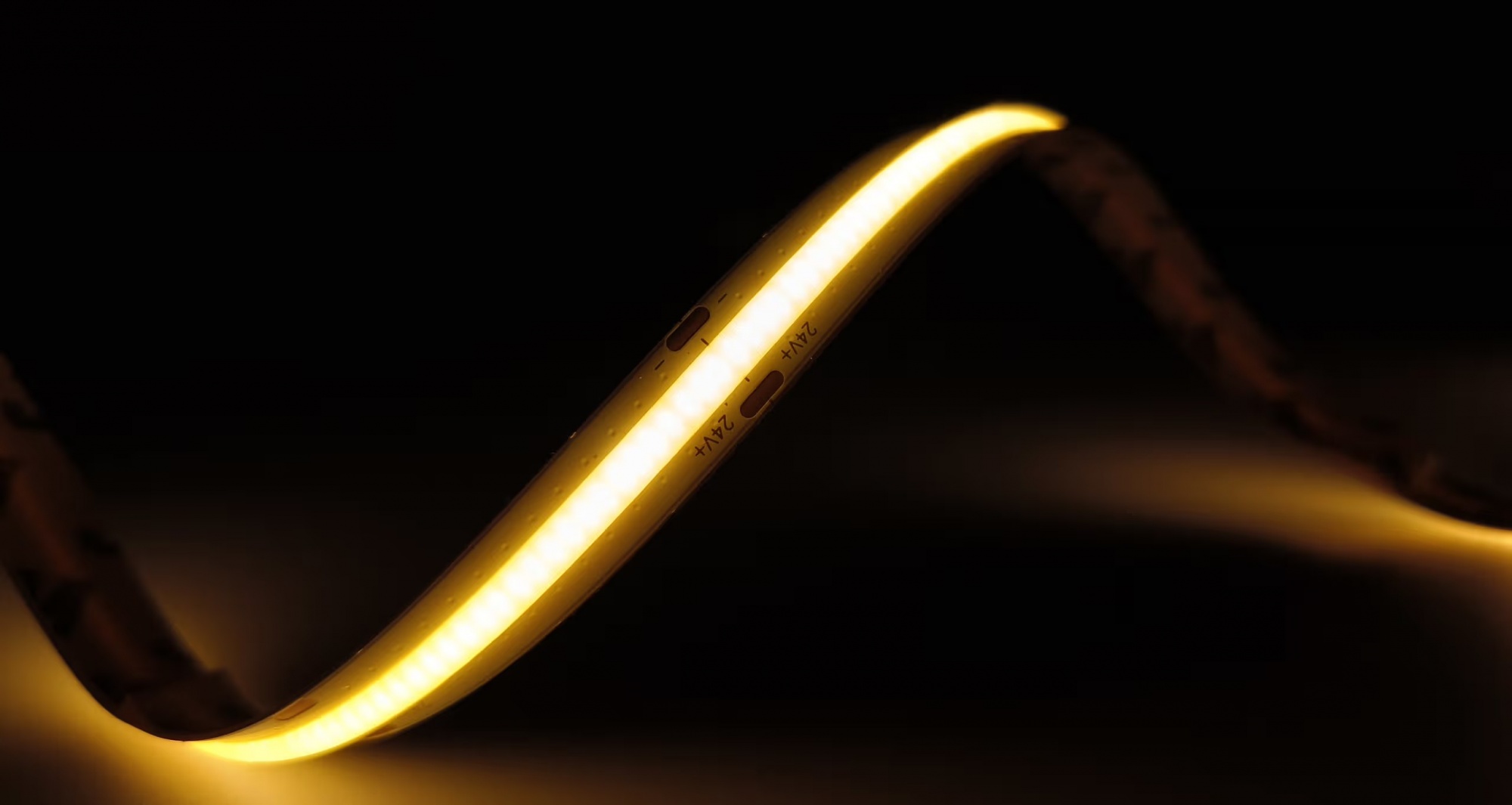

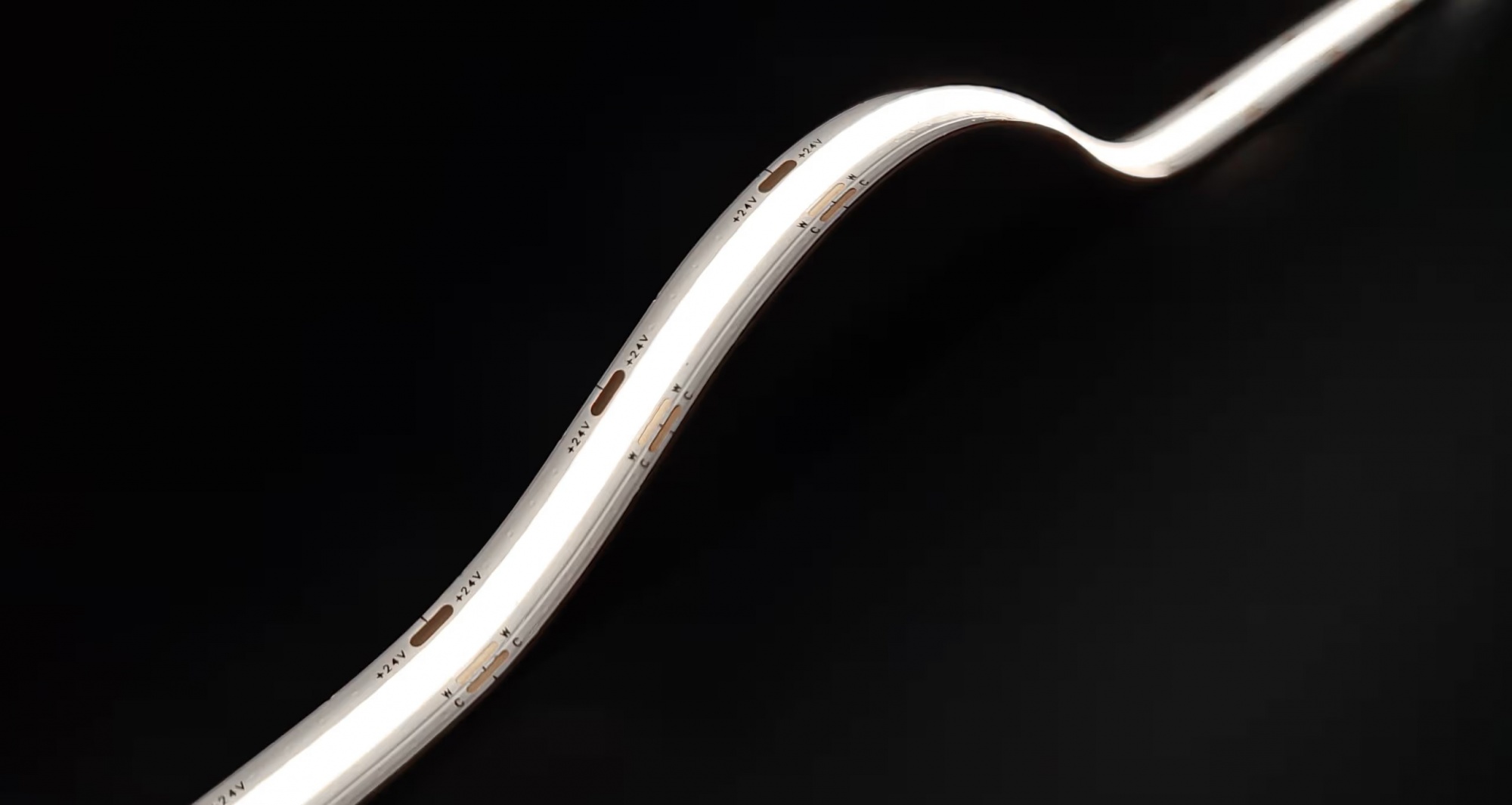

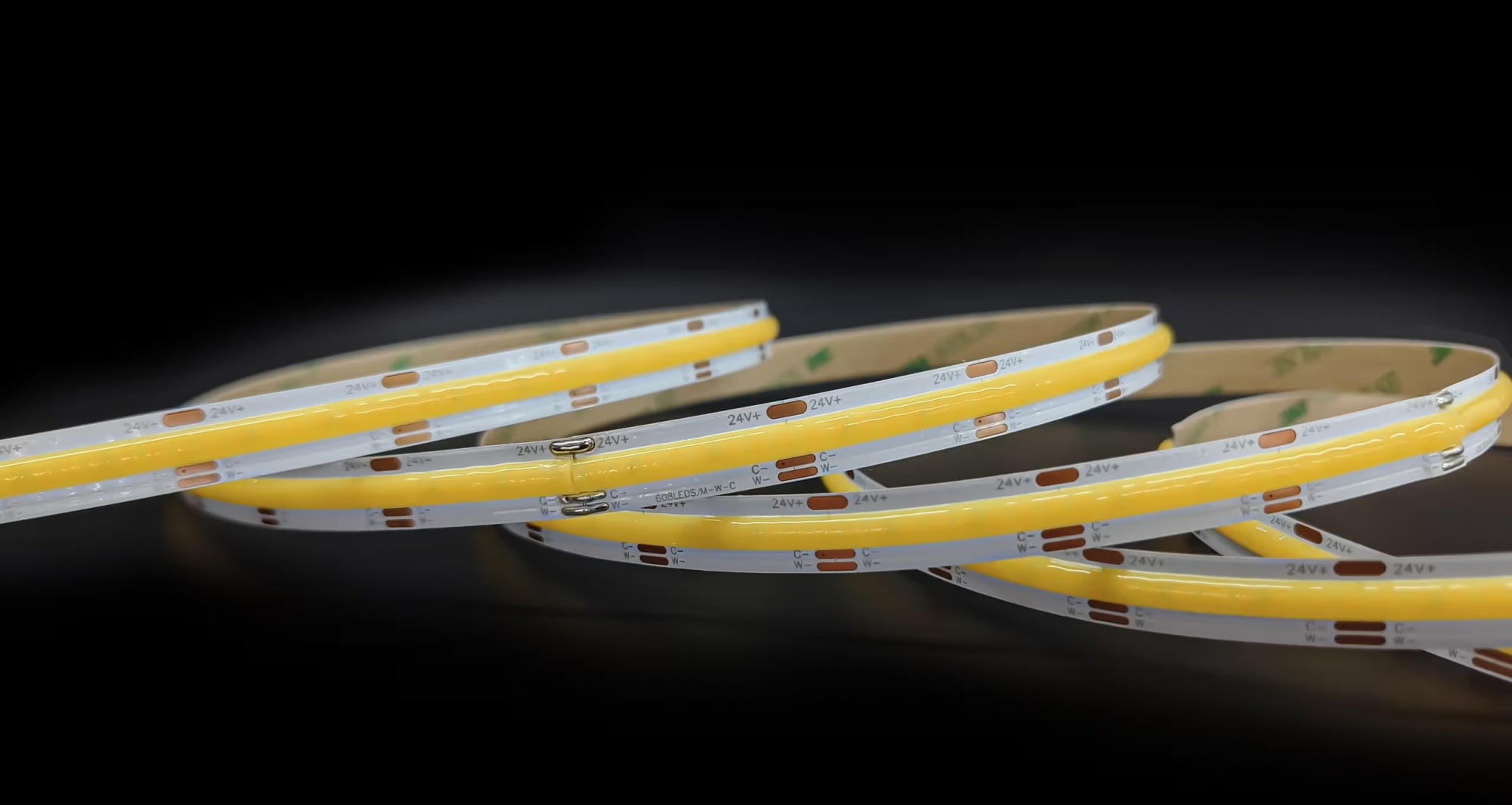

528Chips DC12V/24V COB LED Strip Light
528Chips DC12V/24V COB LED Strip Light
528Chips DC12V/24V COB LED Strip Light

528Chips DC12V/24V COB LED Strip Light

top sale

Product: COB-528LED-10MM
528chips, 100lm/W, dot-free
High power to 14W/m
180 degree beam angle
CRI90+, for decorative lighting

528Chips DC12V/24V COB LED Strip Light

Select the number of specifications

Please check the product information you want!

Product Detail

Product: COB-528LED-10MM

528chips, 100lm/W, dot-free

High power to 14W/m

180 degree beam angle

CRI90+, for decorative lighting


Specifications:

Model No.

CM-COBSL528

Efficiency

>105lm/W

Input Voltage

DC12V/24V

Beam Angle

180°

Power

14W/m

Cut Section

45.45mm

LED QTY

528LEDs/m

Dimension

5000*10*2.3mm

CCT

2700K - 6500K

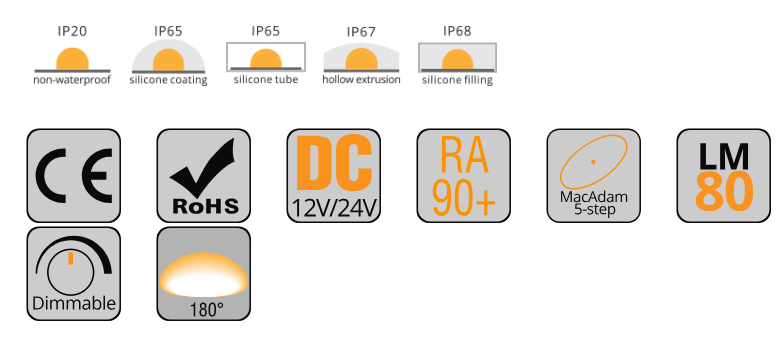

IP Rating

IP20/IP65/IP67/IP68

SDCM

≤5

Warranty

3 Years

CRI

>90

Package Info

L22*W22*H26cm(500m/Box)

Dimensions:

CM-COBSL528-12V


FYX10T528A Dimension

CM-COBSL528-24V


FYX10T528C Dimension



Features:


COB strip light is a new type of strip, COB stands for Chip on Board, it’s a technology which package led chips directly on the flexible printed circuit board. It reduces the use of frame and gold thread compared to traditional flexible strip, come with No-hot-spot, wider beam angle, better heat dissipation, etc.

multi-color
waterproofing
quality assurance
hign brightness led
safety voltage
rubber
COB-480LED-8MM_Feature
COB-480LED-8MM_Feature-Flexibility

Flexibility

Due to the Chip On Board technology, it is so flexible even for tiny bend radius.

Dotless

Consistent and uniform lights with no hot spots, perfect
solution for a wide variety of applications where you don’t
want to see the dots.

COB-480LED-8MM_Feature-Dotless
COB-480LED-8MM_Feature-Excellent

Excellent

From the quality LED chips to the copper core wires, the internal and external artisanal craftsmanship creates comfortable lighting products with peace of mind and durability.

Wider Beam Angle

Uniform light color/high transmittance/no dark area/long
service life, COB strip light angle up to 180°, luminous efficacy
up to 100Im/W.

COB-480LED-8MM_Feature-Wider beam angle


No comment

Previous : Color Changeable Tunable CCT COB Strip Light Next : COB-576LED-10MM-RGB 12/24V
Product Detail

Product: COB-528LED-10MM

528chips, 100lm/W, dot-free

High power to 14W/m

180 degree beam angle

CRI90+, for decorative lighting


Specifications:

Model No.

CM-COBSL528

Efficiency

>105lm/W

Input Voltage

DC12V/24V

Beam Angle

180°

Power

14W/m

Cut Section

45.45mm

LED QTY

528LEDs/m

Dimension

5000*10*2.3mm

CCT

2700K - 6500K

IP Rating

IP20/IP65/IP67/IP68

SDCM

≤5

Warranty

3 Years

CRI

>90

Package Info

L22*W22*H26cm(500m/Box)

Dimensions:

CM-COBSL528-12V


FYX10T528A Dimension

CM-COBSL528-24V


FYX10T528C Dimension



Features:


COB strip light is a new type of strip, COB stands for Chip on Board, it’s a technology which package led chips directly on the flexible printed circuit board. It reduces the use of frame and gold thread compared to traditional flexible strip, come with No-hot-spot, wider beam angle, better heat dissipation, etc.

multi-color
waterproofing
quality assurance
hign brightness led
safety voltage
rubber
COB-480LED-8MM_Feature
COB-480LED-8MM_Feature-Flexibility

Flexibility

Due to the Chip On Board technology, it is so flexible even for tiny bend radius.

Dotless

Consistent and uniform lights with no hot spots, perfect
solution for a wide variety of applications where you don’t
want to see the dots.

COB-480LED-8MM_Feature-Dotless
COB-480LED-8MM_Feature-Excellent

Excellent

From the quality LED chips to the copper core wires, the internal and external artisanal craftsmanship creates comfortable lighting products with peace of mind and durability.

Wider Beam Angle

Uniform light color/high transmittance/no dark area/long
service life, COB strip light angle up to 180°, luminous efficacy
up to 100Im/W.

COB-480LED-8MM_Feature-Wider beam angle
