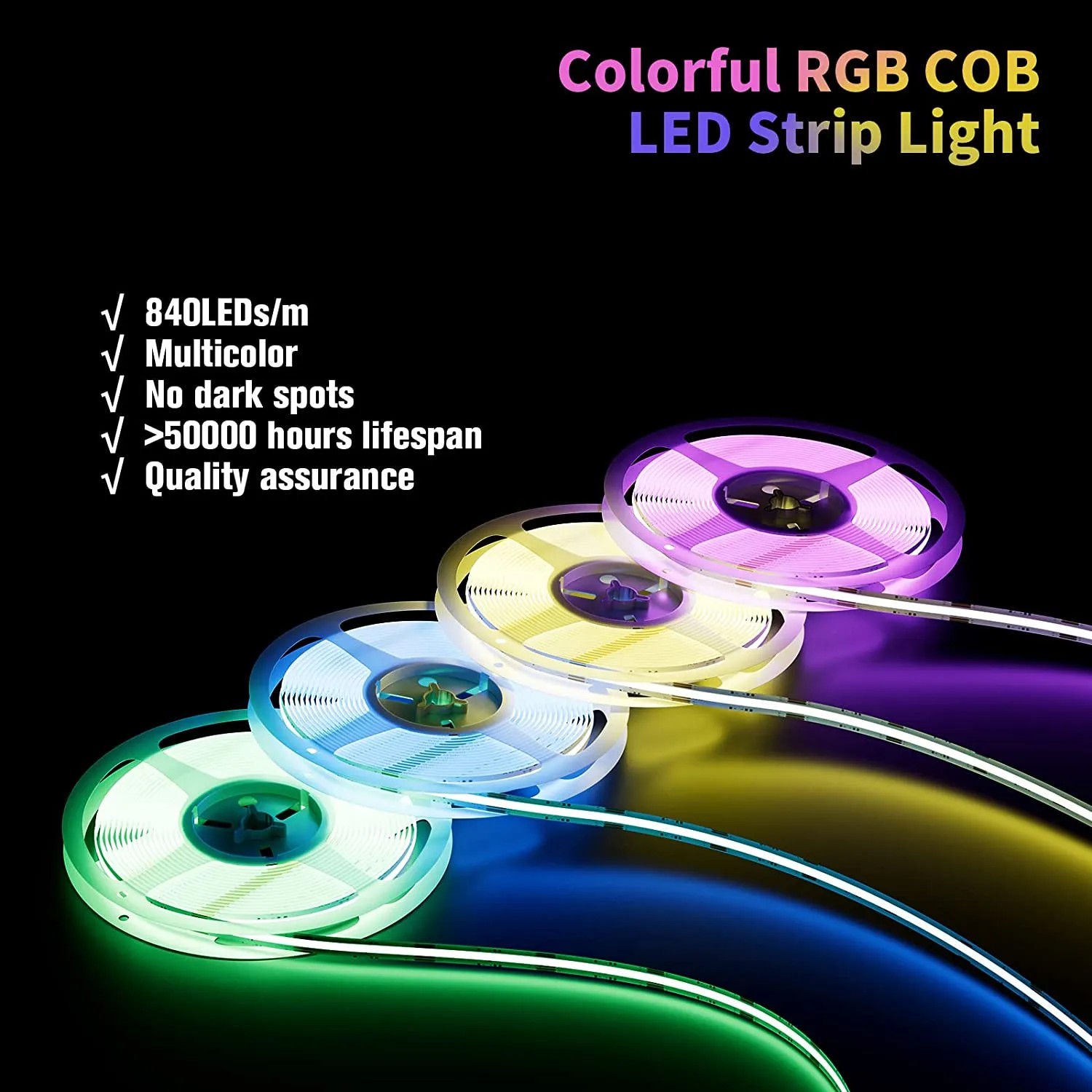

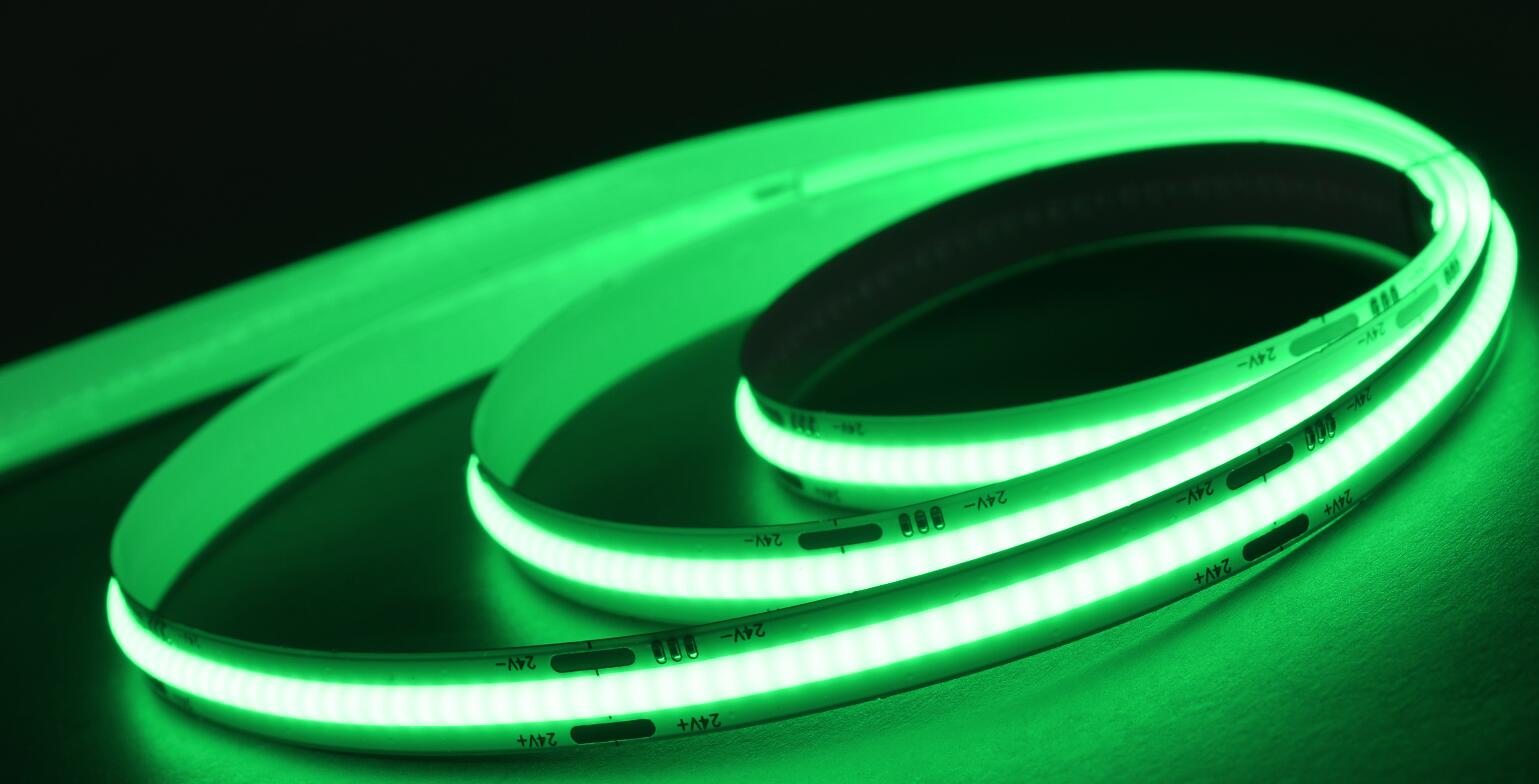

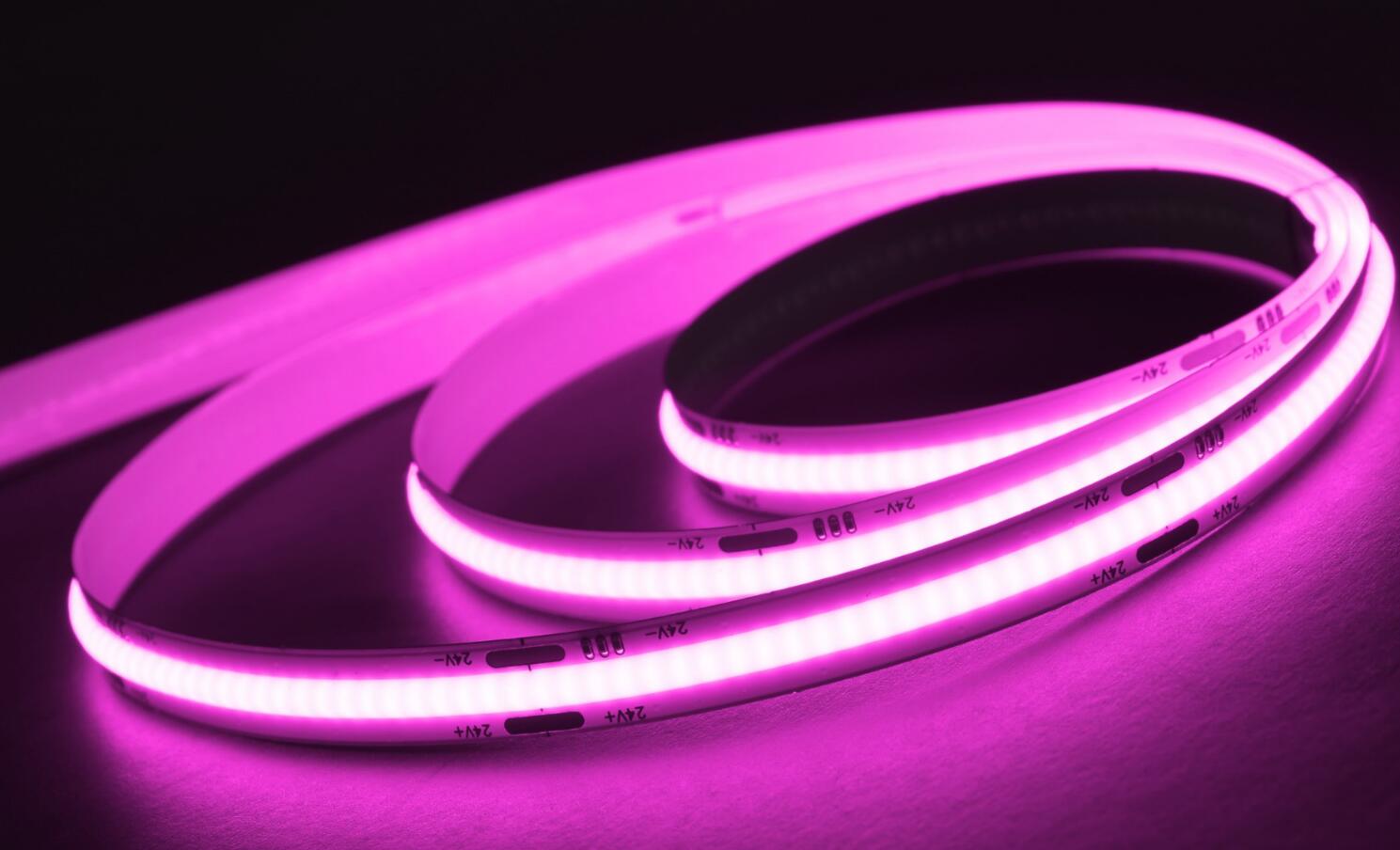

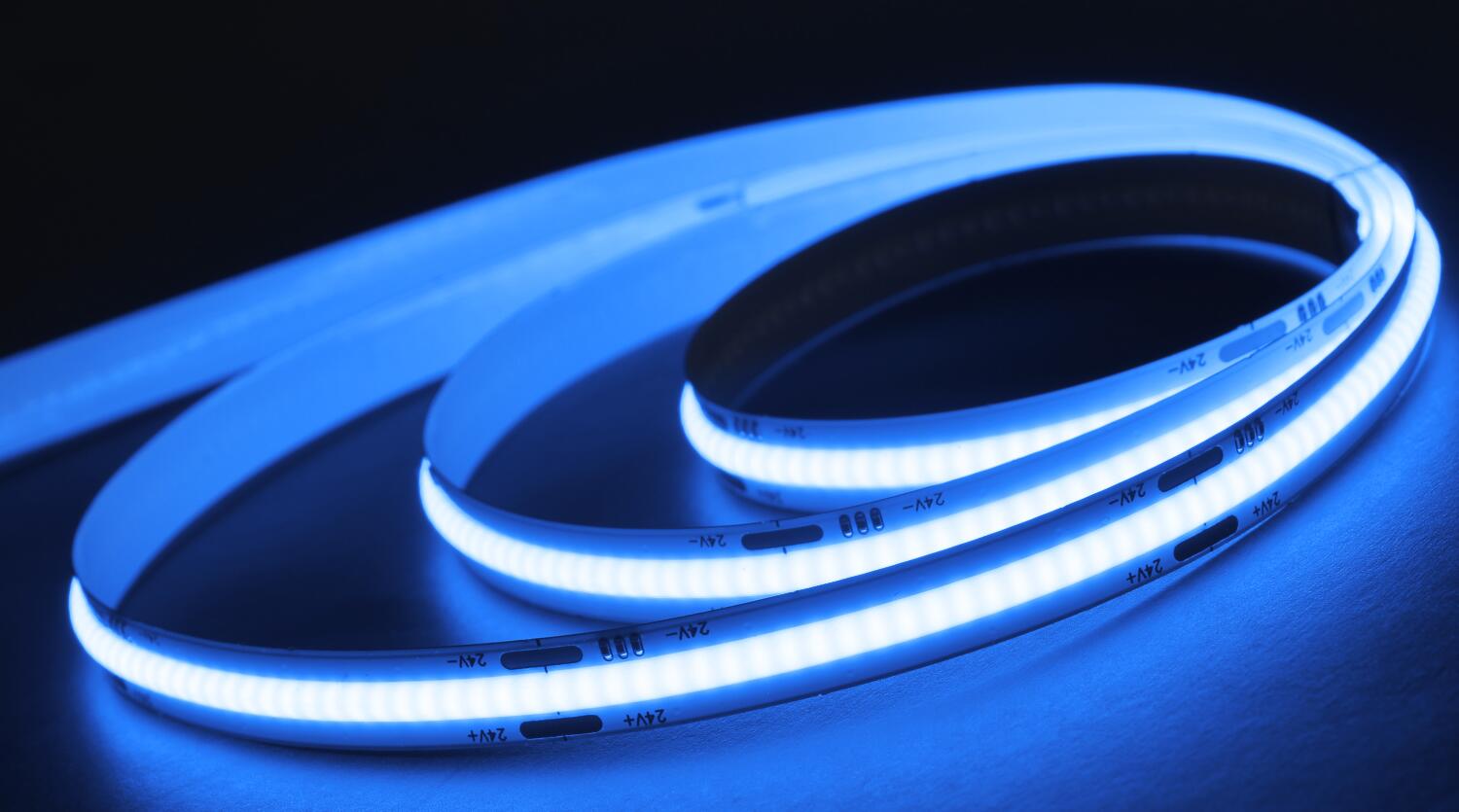

RGB COB LED strip
RGB COB LED strip
RGB COB LED strip
RGB COB LED strip
RGB COB LED strip
RGB COB LED strip
RGB COB LED strip

RGB COB LED strip

Input voltage:： DC12V/24V
SMD Type:： COB
LED Quantity:： 420pcs,720pcs and 840pcs
Beam Angle：： 180°
Working temperture:： -25℃~+45℃
PCB Width(mm) :： 12mm
Colors:： RGB

RGB COB LED strip

Select the number of specifications

Please check the product information you want!

Product Detail

RGB COB LED strip

COB strip is a high-density led lighting strip made by COB encapsulation

No spot, no shadow, soft  and uniform lighting.

RGB color, it can be chosen red,green,blue or any mixing colors by a RGB controller

Linear LED strip and dot-free with large light-emitting angle

The largest emitting angle can reach to 180°

Can be cut,and be free to cut off and weld along with the above cutting line.


Technical Data

SMD Type:COB
LED Quantity 420leds,720leds and 840leds/M
Beam Angle： 180°
Working temperture:-25℃~+45℃
PCB Width(mm) :12mm


Dimension





Product parameter

Model




Cutting unit
CM-COBSL420L-RGBDC24V420pcs15W555lm5m50mm
CM-COBSL720L-RGBDC12V720pcs15W495lm5m25mm
CM-COBSL840L-RGBDC24V840pcs15W624lm5m50mm



Cable


Production Quality Control Process

We have developed a complete set of production quality control systems, from raw materials to SMT, and even the subsequent assembly, testing, packaging, and shipment of each link are the implementation of strict quality control processes to ensure that our colors LED strip can be perfectly delivered to customers.

SMT Process

SMT Process

Use high speed automated SMT machine to paste LED chips, IC chips, resistors to make sure all components are in the right place.

Automated Dispensing

Automated Dispensing

Use multi-nozzle automated dispensing equipment to evenly coat the formulated phosphor on the COB tape light.

100% QC Inspection

100% QC Inspection

After reflow soldering and high-temperature ovens, the COB strip needs to be tested again at 100% to ensure no defective LEDs.

Bending Test

Bending Test

The purpose of the bend test is to test whether the strip light can withstand a certain amount of bending without affecting its performance or life.

Twist Test

Twist Test

The LED strip twist test is mainly used to test the bending resistance and life span of LED strip lights by simulating the deformation of light strips in long-term use.

Aging Test

Aging Test

Aging for 8 hours, ensure each LED runs in good condition. And for the COB LED strip, there will be a slap test to check the stability.

Pasted With 3M Tape

Pasted With 3M Tape

All LED strips pasted with 3M adhesive tape and rolled reels to ensure easy transportation and installation.

Final Product Test

Final Product Test

Our quality inspectors conduct a final inspection of each roll of LED strip to ensure the consistency of the light color and the good appearance of the strip.

Packaging

Packaging

Finally, the labels are pasted on the reels and anti-static aluminum foil bags, and the COB strip lights are ready to be boxed and shipped.

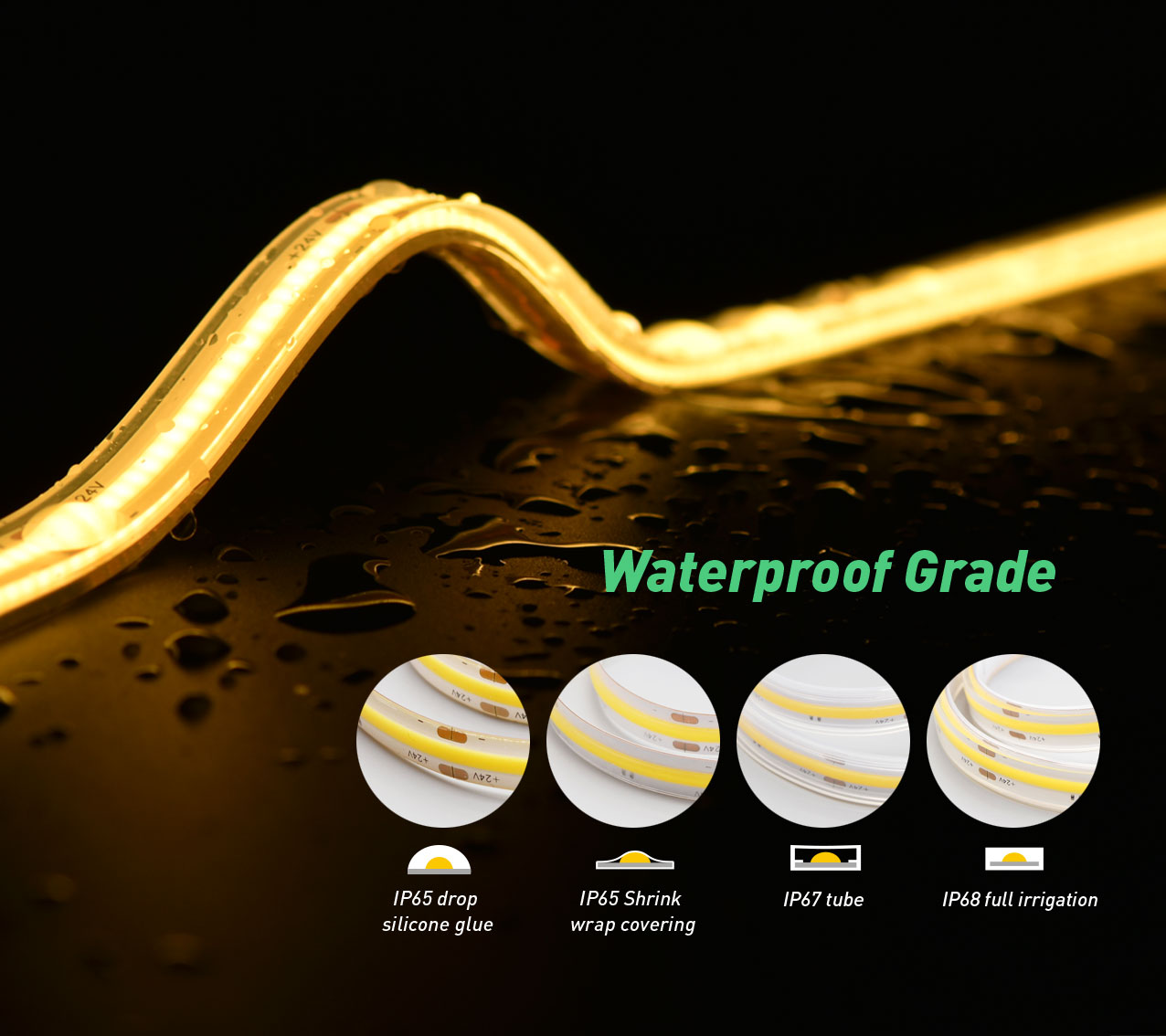

IP65 Waterproof Drop Process

This type of waterproof COB strip light add a silicone layer on top of the LEDs basically fully sealing off the top end of the LED
strip, including all the solder joints and contact points. It can provide protection from water, humidity, and dust.

Before IP65

Before

arrow
Dropping IP65

Dropping gel

arrow
After IP65

After



No comment
